Product Description

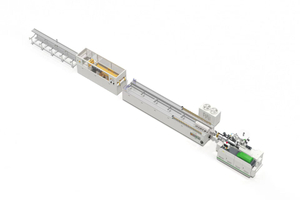

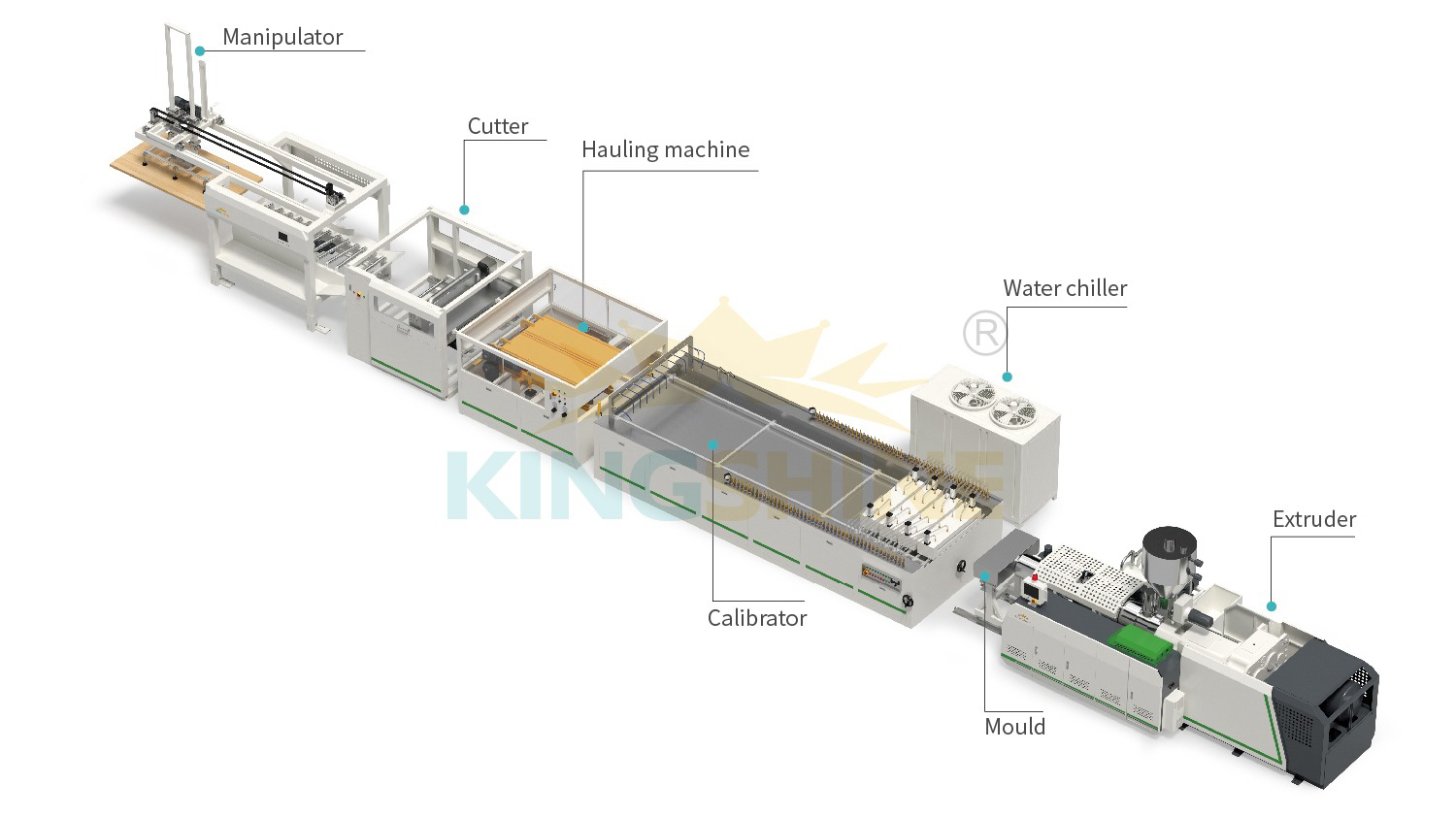

PVC/WPC door board production line adopts exclusively designed SJZB80/156 or SJZB92/188 conical twin screw extruder, with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final products.
From Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time.
Adopting Siemens motor, which provide stable torque output and various speed.
Have wide adjustment range, high precision temperature control, simple operation and good reliability.
Ensure good effects of the door board forming.
Utilizes branded reducing speed motor and ABB frequency inverter, and is featured in reasonable structure design, large and stable hauling power.
Equipped with dust collector device, has advantages of reliable and accurate work, high precise cutting performance.
Automated processes reduce manual labor and increase production speed.
Advanced technology optimizes power usage.
Ensures uniformity in thickness, texture, and strength.
| Model | 80/156 | 92/188 |
| Thickness (mm) | 25~45 | 25~45 |
| Width(mm) | 800~1000 | 800~1000 |
| Extruder motor(kw) | 75 | 110 |
| Capacity(kg/h) | 300~400 | 500~600 |

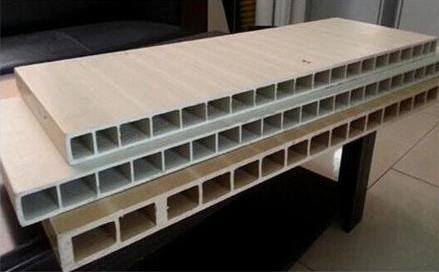

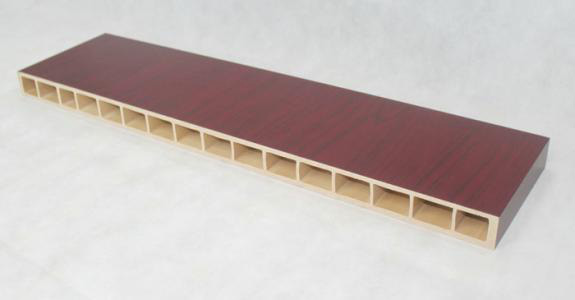

PVC/WPC door boards are manufactured using a combination of plastic polymers and natural wood fibers or other composite materials. These doors provide exceptional strength, resistance to moisture, and termite-proof properties, making them ideal for residential and commercial applications.
Moth-proof, anti-corrosion, bacteriostasis, suitable for using in any indoor area.
No toxic substances, dangerous chemical components or preservatives, no formaldehyde, benzene or other harmful substances released, will not cause air pollution and environmental pollution, 100% recycling, but also biodegradable.
Fireproof grade is B1, second only to stone, suitable for high fire protection requirements occasions.
Longer lifetime.
Lower production but higher quality.
The surface of board can not only laminate different films to make different patterns, but also can engrave to make different designs.
No shape exchange.
Kingshine Plastic Machine Co,.Ltd. is a professional PVC/WPC Door Board Production Line manufacturer in China.PVC/WPC Door Board extrusion line have wide adjustment range, high temperature control precision and convenient and reliable operation.
What we are offering about PVC/WPC Door Board project?

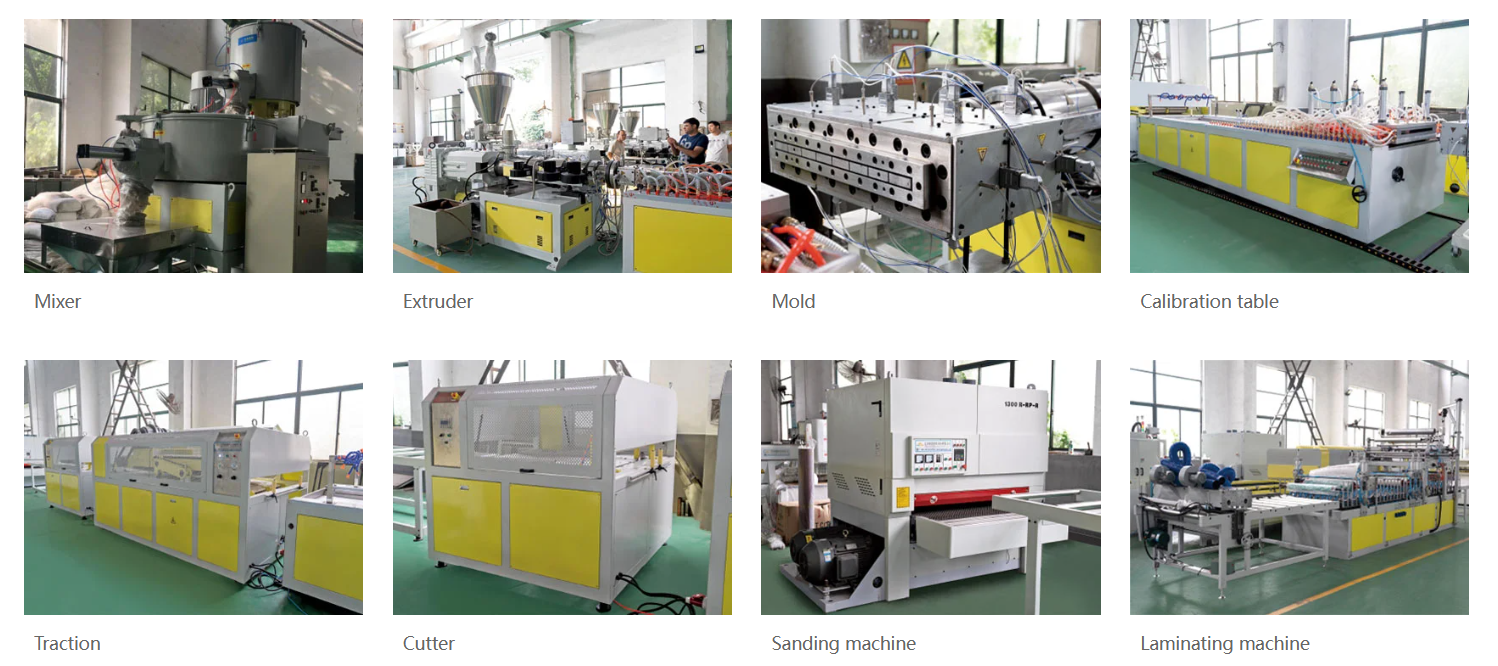

1. PVC/WPC Door Board Full Production Line:
PVC/WPC Door Board Extruder Machine,Mixer,Sanding Machine,Laminating Machine
2. Raw Materials for PVC/WPC Door Board:
Chemicals:PVC SG7,Calcium powder,Stabilizer,PVC Lubricant,PE Wax
3. Spare Parts for PVC/WPC Door Board Manufacturing Line:
Extruder Mould,Screw & Barrel
Service & Support
Kingshine specializes in manufacturing high-end PVC plastic extrusion equipment.
Our company specializes in the research and development of SPC/LVT flooring production line, PVC laminate production line, PVC foam board production line, PVC door board / door frame production line.
Kingshine equipment exported to Europe, the Middle East, Africa and Southeast Asia and other countries and regions, enjoying the reputation and praise of customers at home and abroad.
Our company provides the whole line turnkey project, according to customer project requirements, there are senior experts to provide customers with a full range of services.
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
1. Installation overseas
2. Provide all kinds of product formula, technology and chemical material manufacturer information
3. According to the customer's requirements, provide technical guidance
4. Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
FAQ

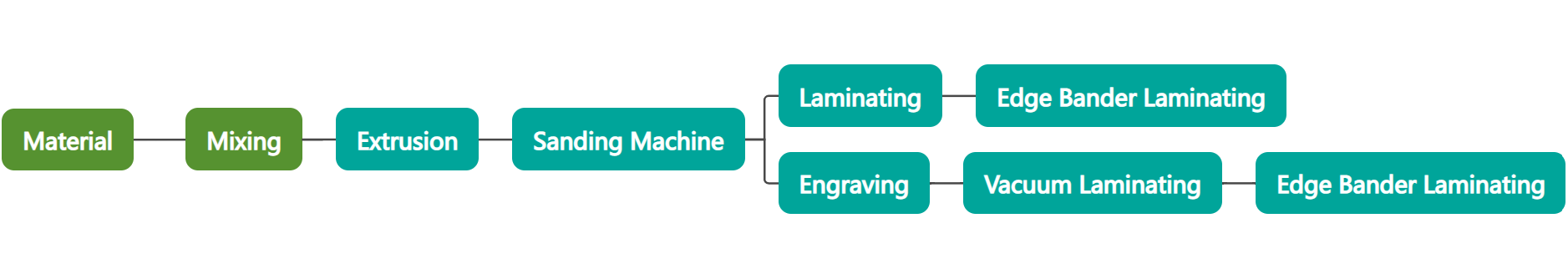

Raw Material Preparation – Mixing PVC/WPC materials with additives.
Extrusion and Molding – Heating and shaping into door board profiles.
Cooling and Calibration – Ensuring precise dimensions.
Cutting and Trimming – Adjusting length and width.
Surface Finishing – Applying aesthetic treatments.
PVC SG7,Calcium powder,Stabilizer,PVC Lubricant,PE Wax
Capacity depends on the extruder size, ranging from 300kg/hr to 600kg/hr.
Regular cleaning, lubrication, and checking of mechanical components ensure efficiency.
Yes, different moulds and cutters allow size and design variations.
Options include laminating, hot stamping, painting, and embossing.
Yes, especially WPC, which uses recycled materials and reduces deforestation.
Costs vary from $50,000 to $500,000, depending on capacity and automation level.
Regular inspections, thickness measurements, and strength testing ensure quality.
Uneven thickness: Adjust calibration settings.
Surface defects: Improve raw material quality.
Breakage: Modify extrusion temperature and pressure.
With proper care, these boards can last over 20 years.
Yes, they can be recycled into new products.
Interior doors, partitions, and furniture applications.
