Product Description
Adopting crushing type pelletizer to get higher capacity;
Large L/D ratio, good effect of mixing, plasticization, dispersion, exhaust and moisture-removing;
Building block type screw and barrel of the extruder,according to the L/D by yourself;
Cooling transporting mode is two grade fans or three grade fans;
The motor and electrical components adopts domestic and internation-al brands.
| Model | 65 | 75 | 75+ |
| L/D ratio | 36-40 | 36-40 | 52 |
| Extruder motor(kw) | 75 | 110 | 280 |
| Capacity(kg/h) | 150-250 | 400-600 | 1000-1200 |

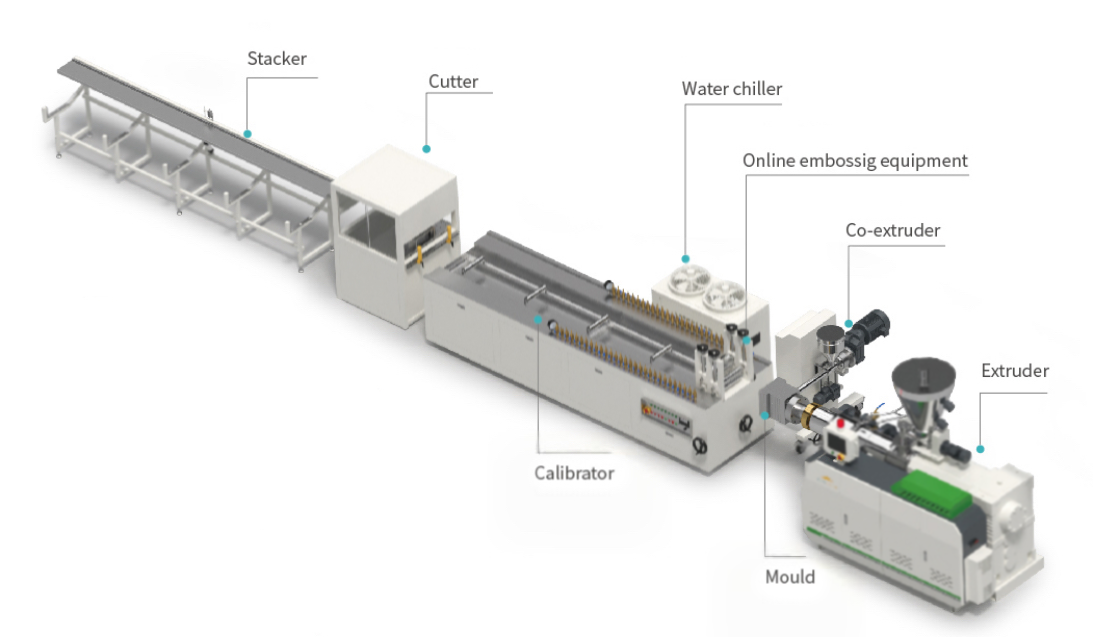

PE/PP WPC Outdoor Profile Production Line adopts updated designed SJZB65/132 or SJZB80/156 conical twin screw extruder, with stable and high quality screw and barrels as well as molds , which can ensure good quality products.
From JC Deling gearbox company, very famous brand in China, with integrated and one time transmission as well as Germany FAG bearings. Which assures stable running, low noise and long service time.
Adopting Siemens company brand series motor, which provide stable torque output and various speed.
Have accurate adjustment range, high precision temperature control, simple operation and good reliability.
The production line is equipped with large forcing cooling device to ensure good effects of the product forming.
Uses integrated type reducer and ABB frequency inverter synchronized with main extruder, which features in reasonable structure design, large and stable hauling power.
Equipped with dust collector device, which assures non-dust during the running, which equipped with Siemens control system with reliable and accurate work as well as high precise cutting performance through photoelectric fixed-length cutting mode.
| Model | 65/132 | 80/156 |
| Max width(mm) | 300 | 600 |
| Extruder motor(kw) | 37 | 55 |
| Main extruder capacity(kg/h) | 150-250 | 250-350 |

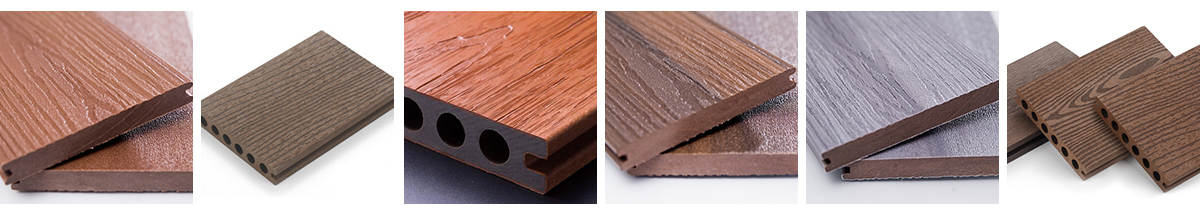

WPC stands for Wood-Plastic Composite, a composite material made from a blend of plant fibers with adding recycled HDPE or PP as well as chemical additives,which produces environmetally friendship plastic products, which are both widely available and offer excellent properties for outdoor applications like garden, sauna bar, beach and so on. These materials combine the natural look and feel of wood with the strength, flexibility, and weather resistance which replaces traditional woods, which protects earth environment and reduces carbon emission, which indeed the concept "Green water and green mountains are gold and silver mountains" .
One of the most notable benefits of PE/PP WPC profiles is their durability. These profiles are resistant to wear and tear, making them ideal for outdoor use. Unlike wood, they don't warp, crack, or splinter over time.
PE/PP WPC profiles are highly resistant to weather conditions. Whether it's rain, snow, or intense sunlight, these profiles won't fade, crack, or warp like traditional wood. This makes them ideal for outdoor environments with extreme weather conditions.
Another advantage of PE/PP WPC profiles is their low maintenance. Unlike wood, which needs to be stained or treated regularly, WPC profiles only require occasional cleaning. This makes them a convenient and cost-effective choice for homeowners and businesses alike.
PE/PP WPC profiles have a wood-like appearance that adds a natural, warm aesthetic to any outdoor space. With a variety of colors, textures, and finishes available, these profiles can complement any design style.
The manufacturing of PE/PP WPC profiles often involves the use of recycled wood fibers and plastic materials, which reduces waste and the demand for virgin resources.
Both PE and PP are recyclable, meaning that WPC profiles can be reused and repurposed at the end of their life cycle, reducing their environmental impact.
By using recycled materials and offering long-lasting products, PE/PP WPC profiles help to reduce the carbon footprint associated with outdoor construction.
Kingshine Plastic Machine Co,.Ltd. is a professional PE/PP WPC Outdoor Profile Production Line manufacturer in China.PE/PP WPC Outdoor Profile extrusion line has the characteristics of high efficiency and energy saving.

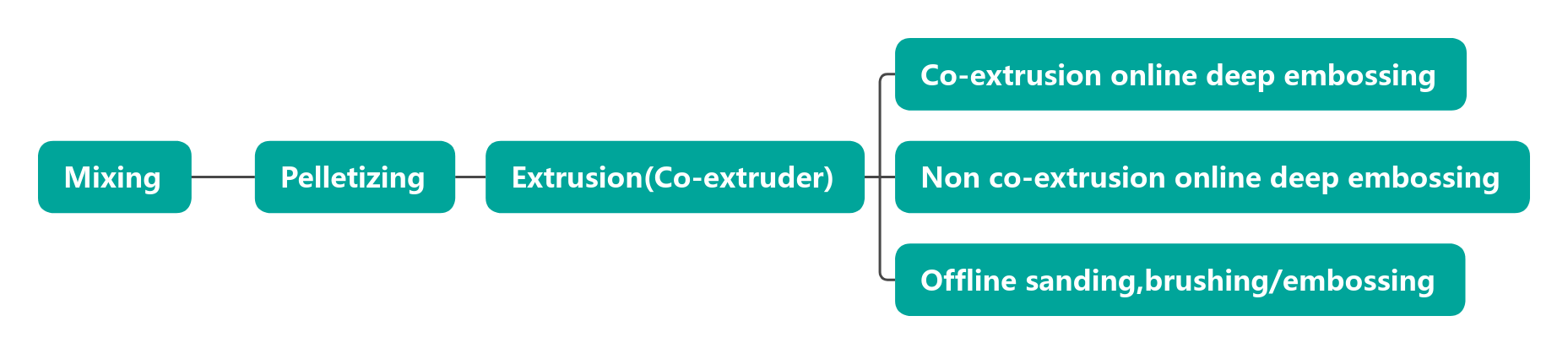

PE/PP WPC Outdoor Profile Extruder Machine,Pelletizing Production Line,Mixer,Crusher & Milling Machine,Sanding machine,Brushing machine,Embossing machine,Water chiller, Online embossing equipment,etc
Component:HDPE/PP recycled,Wood Powder,Chemical additives
Co-extrusion materials
3. Spare Parts for PE/PP WPC Outdoor Profile Manufacturing Line:
Screw & Barrel, confluence core, barrel heaters and other necessary ones.
Service & Support
Kingshine specializes in manufacturing high-end PVC plastic extrusion equipment.
Our company specializes in the research and development of SPC/LVT flooring production line, PVC laminate production line, PVC foam board production line, PVC door board / door frame production line.
Kingshine equipment exported to Europe, the Middle East, Africa and Southeast Asia and other countries and regions, enjoying the reputation and praise of customers at home and abroad.
Our company provides the whole line turnkey project, according to customer project requirements, there are senior experts to provide customers with a full range of services.
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
1. Installation overseas
2. Provide all kinds of product formula, technology and chemical material manufacturer information
3. According to the customer's requirements, provide technical guidance
4. Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
FAQ
The PE/PP WPC Outdoor Profile Production Line works through an extrusion process. The raw materials (wood fibers, plastics, and additives) are fed into the extruder, where they are mixed and heated to form a consistent, malleable composite. This mixture is then pushed through a mold to form the desired profile, whether it’s a decking board, fencing, or another shape.
After extrusion, the profiles undergo cooling and cutting to the required lengths. The line often includes post-processing stages like sanding, coating, or heat treatment to improve the appearance and performance of the profiles.
Decking: Durable and weather-resistant, ideal for residential and commercial outdoor spaces.
Fencing: Offers both privacy and aesthetic appeal while standing up to the elements.
Cladding: Used for exterior walls, providing insulation and protection against weather damage.
Landscaping Materials: Including tiles, boards, and decorative items.
Yes, the PE/PP WPC Outdoor Profile Production Line is adaptable to both small and large-scale production needs. Whether you are a small business looking to cater to niche markets or a large-scale manufacturer aiming for mass production, these lines can be adjusted to meet your requirements.
Smaller operations benefit from compact, energy-efficient designs, while large manufacturers may opt for high-capacity lines that can produce more profiles per hour.
Regular Inspection: Periodically check components like extruders, molds, and cooling systems.
Cleaning: Regularly clean the machinery to prevent material buildup and ensure smooth operation.
Lubrication: Ensure that moving parts are adequately lubricated to reduce wear.
Training: Properly train operators to detect issues early and address them promptly.
Yes, the production line can be customized for specific applications. Manufacturers can adjust the design of the molds, extrusion parameters, and even integrate additional post-processing steps such as painting or embossing to achieve the desired texture or appearance.
With proper maintenance, a well-constructed production line can last for many years.
Modern production lines are highly automated, making them easy to operate with minimal training.
Yes, the production line can be adjusted for various product designs and sizes.
The use of recycled materials and energy-efficient manufacturing processes makes the PE/PP WPC production line an eco-friendly option.
To maintain the appearance of your WPC profiles, simply wash them with soap and water. For tougher stains, use a non-abrasive cleaner. Avoid using harsh chemicals that could damage the surface.
Yes, PE/PP WPC profiles are durable and can withstand heavy use, especially when made with higher-density polymers like HDPE.
With proper care, PE/PP WPC profiles can last for decades without fading, cracking, or warping.
Yes, they are designed to resist UV damage, which prevents fading and degradation from sunlight.
