SJZ55/110 , SJZ65/132
Kingshine
Product Description
PVC profile production line adopts designed SJZ55/110 or SJZ65/132 conical twin screw extruder, with stable and high quality screw and barrels as well as molds , which can ensure good quality products.
From JC Deling gearbox company, very famous brand in China, with integrated and one time transmission as well as Germany FAG bearings. Which assures stable running, low noise and long service time.
Adopting Siemens company brand series motor, which provide stable torque output and various speed.
Have accurate adjustment range, high precision temperature control, simple operation and good reliability.
Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extrusion.
Uses integrated type reducer and ABB frequency inverter synchronized with main extruder, which features in stable work, good reliability and large pulling force.
Movement speed and Cutting speed of cutting machine keep synchronous. All movements are controlled by SIEMENS PLC, the design is reasonable, the operation is stable, also it can conduct automatic cutting with fixed length as well as manual cutting mode. The dust will be collected by dust collector.
With different die tooling, the tilter platform can choose such specifications as 4 -meter, 6-meter, 8-meter, 11-meter…etc. conical twin screw extruder, it is particularly suitable for high speed extruding of profile material.
| Extruder Model | SJZ55/110 | SJZ65/132 | |
| Extruder motor(kw) | 22 | 37 | |
| Down-stream equipment model | YF240S | YF240A | YF300A |
| Product width(mm) | Max240 | Max240 | Max300 |
| Haul-off speed | 0-5 | 0-5 | 0-5 |
| Down-stream equipment power | 22 | 35 | 35 |
| Capacity(kg/h) | 100 | 220 | 220 |

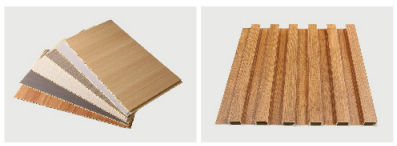

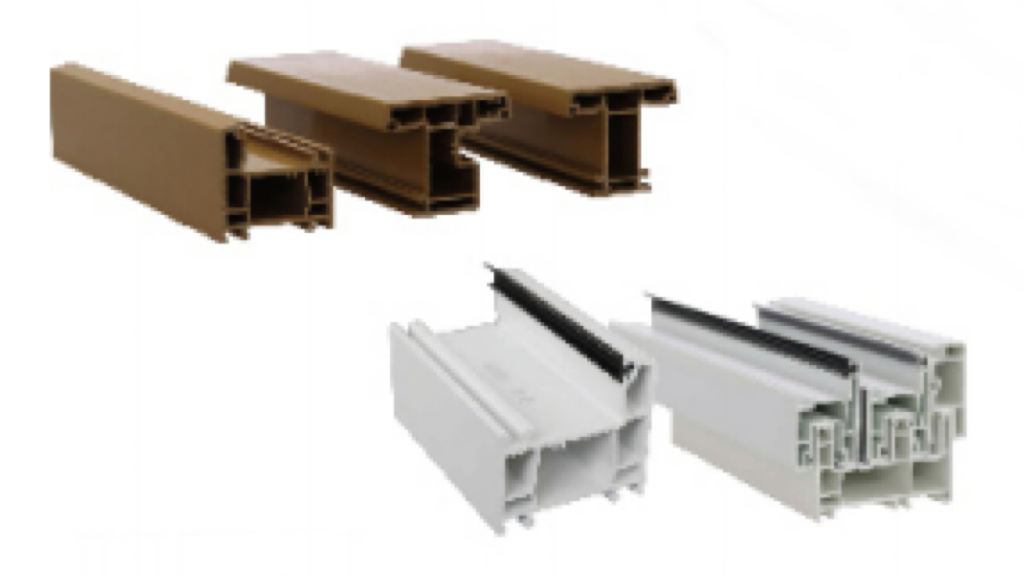

PVC stands for PVC, Caco3 and chemicals which produces environmetally friendship plastic products, which are both widely available and offer excellent properties for indoor applications like house window, window boards and so on. These materials combine the natural look and feel of steel or aluminum profile with the strength, flexibility, and weather resistance ,which replaces traditional door and window profiles, which protects earth environment and reduces carbon emission, which indeed the concept"Green water and green mountains are gold and silver mountains".
No more worrying about rust or rot. PVC doesn't absorb moisture, so it stands tall in humid environments.
Safety first! PVC is self-extinguishing, meaning it won't keep burning once the source of fire is removed.
PVC offers luxury looks without burning a hole in your wallet. It's budget-friendly, especially for large-scale projects.
No sanding, no painting, no crying. Just a simple wipe-down keeps it looking fresh for years.
It thrives in both wet and dry conditions.
Made from recycled materials and fully recyclable.
Kingshine Plastic Machine Co,.Ltd. is a professional PVC Profile Production Line manufacturer in China.PVC Profile extrusion line has wide adjustment range, high temperature control precision and convenient and reliable operation.
What we are offering about PVC Profile project?

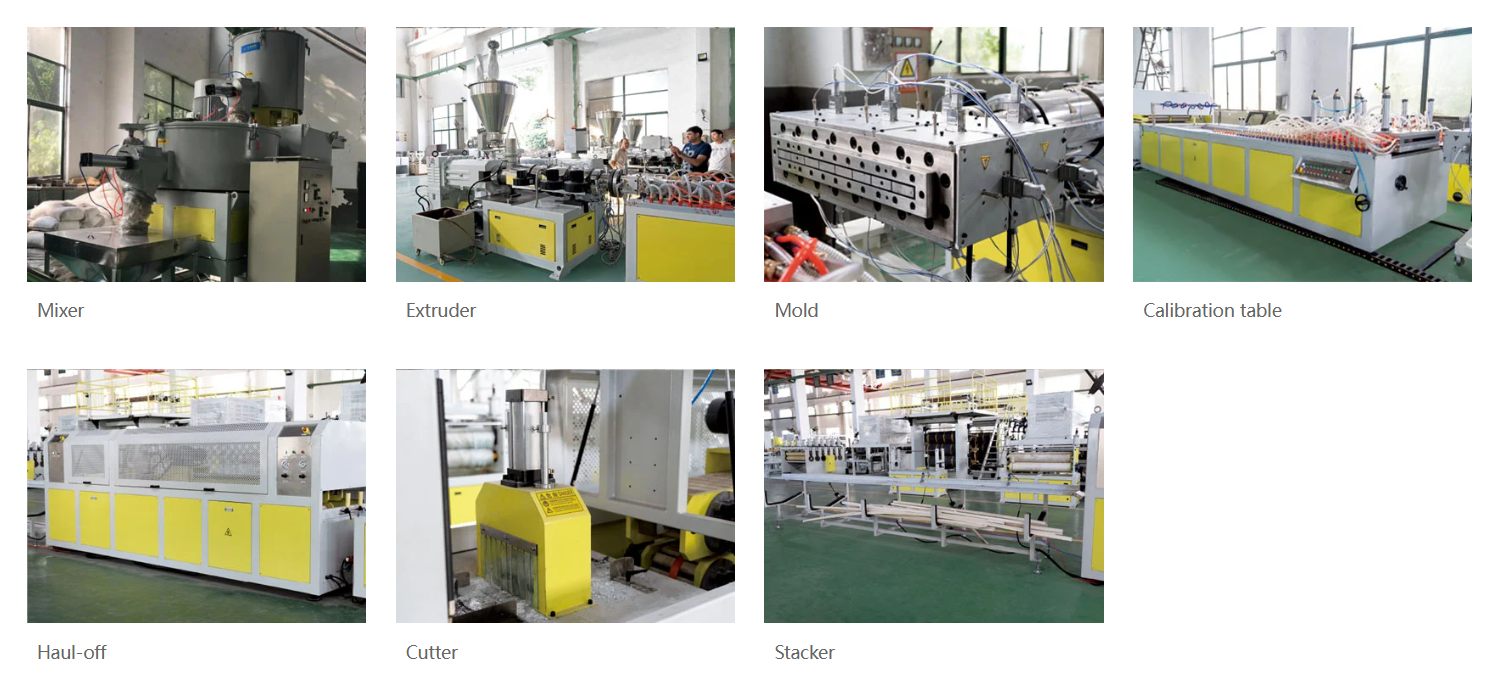

1. PVC Profile Full Production Line:
PVC Profile Extruder Machine,Mixer,Water chiller,etc
2. Raw Materials for PVC Profile:
Chemicals:PVC,Caco3 and chemical additives
3. Spare Parts for PVC Profile Manufacturing Line:
Screw & Barrel,confluence core, barrel heaters and other necessary ones
Service & Support
Kingshine specializes in manufacturing high-end PVC plastic extrusion equipment.
Our company specializes in the research and development of SPC/LVT flooring production line, PVC laminate production line, PVC foam board production line, PVC door board / door frame production line.
Kingshine equipment exported to Europe, the Middle East, Africa and Southeast Asia and other countries and regions, enjoying the reputation and praise of customers at home and abroad.
Our company provides the whole line turnkey project, according to customer project requirements, there are senior experts to provide customers with a full range of services.
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
1. Installation overseas
2. Provide all kinds of product formula, technology and chemical material manufacturer information
3. According to the customer's requirements, provide technical guidance
4. Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
FAQ

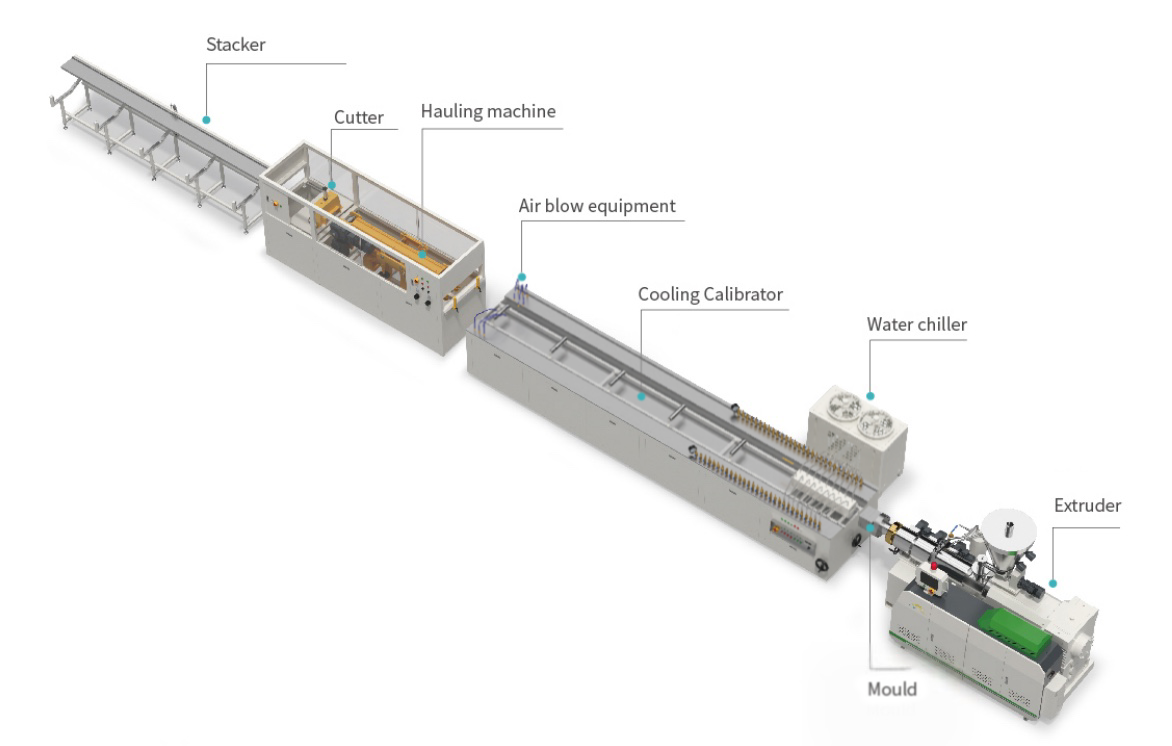

Extruder:
The extruder is like the heart of the operation. It melts and mixes the raw materials under high temperatures, pushing them out into the desired shapes.
Mould and Calibration Table:
The molten mixture moves into mould where it’s shaped. Calibration table use vacuum suction to cool and stabilize the product, ensuring perfect dimensions.
Cooling System:
Efficient cooling is crucial to maintaining shape and strength. Typically, water sprays or immersion baths are used.
Haul-off and Cutter Units:
After cooling, haul-off units pull the profile steadily forward while cutters slice them into precise lengths.
Types of PVC Resin:
Rigid PVC (RPVC) for strong, impact-resistant profiles
Flexible PVC for softer, bendable products
Typically, with good maintenance, it can last 10–15 years or even longer.
Absolutely!
Usually between 2 to 4 months from ordering to full operation.
Depending on the line, expect 60–700 kg/hour.
Basic training (usually provided by the manufacturer) is enough. Plus, new systems are becoming more user-friendly!
Durability and Weather Resistance
They laugh in the face of rain, sun, and even termites. Maintenance is a breeze compared to regular wood.
Eco-Friendliness and Sustainability
Yes, modern PVC formulations are non-toxic and safe for indoor use.
Absolutely. You can paint or laminate them for a customized look.
Yes! PVC can be recycled.
Standard woodworking tools like saws, drills, and screws are enough. No special equipment required!
