PVC Marble(Embossing)/Laminate Sheet Production Line

PVC Marble(Embossing)/Laminate Sheet Production Line Video：PVC Marble(Embossing)/Laminate Sheet Production Line Features:

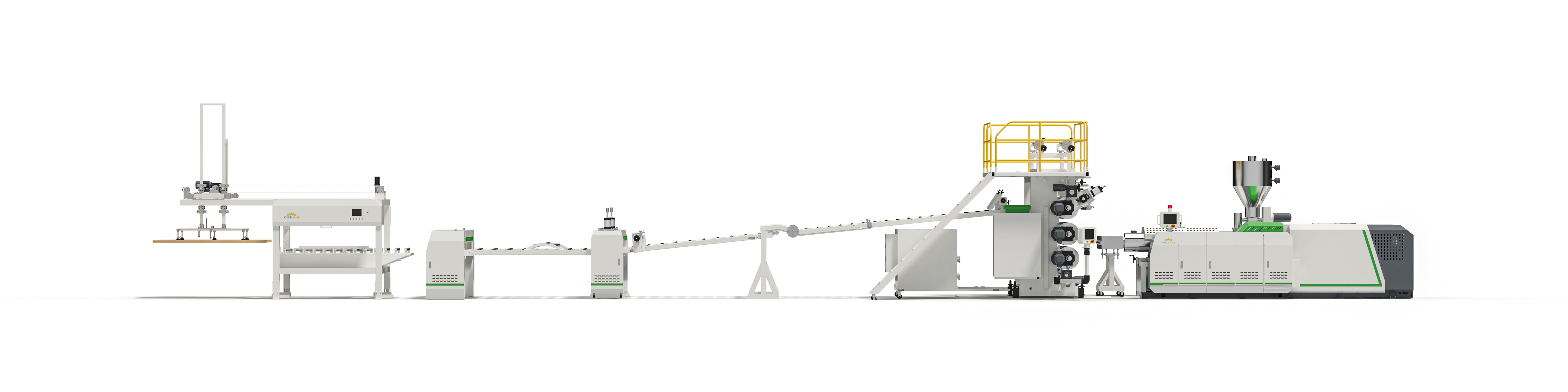

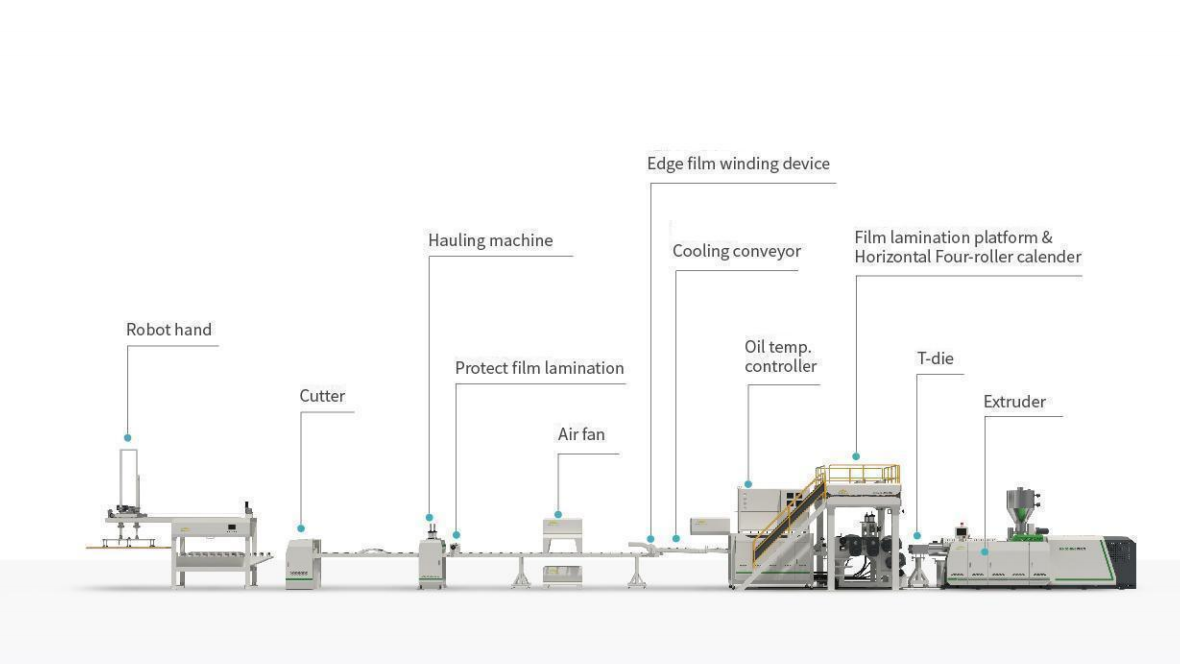

Composition of the production line: Conical twin - screw extruder, T-die, vertical three - roller calender (including online laminating), cooling rollers,traction and edge - trimming device, shearing machine, sheet - lifting machine. The horizontal four roll calender is specially developed for surface embossed products.Diferent patterns can be customized bY replacing the embossing rollers, and  roller replacement is convenient.

PVC Marble(Embossing)/Laminate Sheet Production Line  Technical Parameter

Model	80/156	92/188
Thickness (mm)	1~3/2~8	1~3/2~8
Width(mm)	1350	1350
Main Motor Power(kw)	75	110
Capacity(ton/24h)	10	15

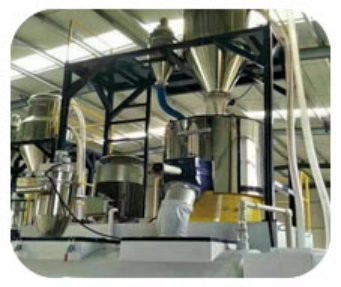

The production process of the PVC Marble(Embossing)/Laminate Sheet Production Line begins with the preparation of raw materials. PVC resin, plasticizers, stabilizers, pigments, and various additives are precisely measured and mixed together to form a homogeneous compound. This mixture is then fed into an extruder. Inside the extruder, the material is heated to a molten state under high pressure and is extruded through a die to form a flat sheet.

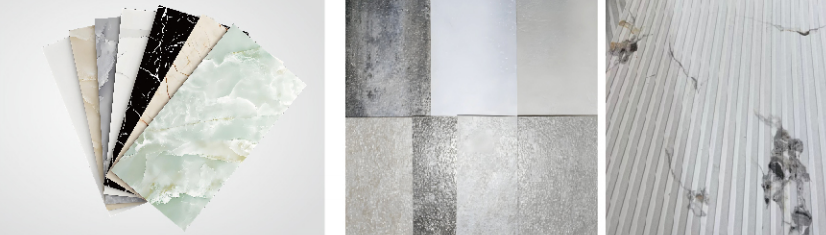

For PVC marble sheets, after extrusion, the sheet may undergo a printing process. Special printing techniques are used to apply patterns that mimic the appearance of natural marble onto the surface of the sheet. Subsequently, if an embossing process is required, the printed sheet passes through embossing rollers. These rollers press a textured pattern onto the sheet, enhancing the realistic marble - like effect.

In the case of laminate sheets, additional layers such as decorative films or protective coatings may be laminated onto the base PVC sheet. This lamination process is usually carried out using heat, pressure, and adhesives. After all the processing steps, the sheets are cooled to solidify their shape, and then cut into the desired sizes and lengths before being packaged for storage and distribution.

2. What types of materials are used in the PVC Marble(Embossing)/Laminate Sheet Production Line?

The primary material is PVC resin, which serves as the base for the sheets, providing strength and durability. Plasticizers are added to make the PVC more flexible and easier to process during extrusion. Stabilizers are crucial for improving the heat resistance and light stability of the material, ensuring the long - term performance of the sheets.

Pigments are used to create the desired color of the sheets. For marble - effect sheets, specific pigments and printing inks are employed to replicate the natural colors and veining of marble. Fillers, such as calcium carbonate, are often incorporated to increase the rigidity of the sheets and reduce production costs.

In the production of laminate sheets, decorative films made from various polymers or papers with printed designs are used for lamination. Protective coatings, typically made of UV - resistant or scratch - resistant materials, are also applied to enhance the surface properties of the laminate sheets. Additionally, adhesives are used to bond the different layers together during the lamination process.

3. What are the common issues in PVC Marble(Embossing)/Laminate Sheet Production Lines and how can they be fixed?

• Uneven thickness: This can be caused by improper die adjustment or fluctuations in the extrusion speed. Solution: Regularly calibrate the die to ensure uniform thickness across the sheet. Monitor and stabilize the extrusion speed, and make adjustments as needed using the control systems of the production line.

• Poor embossing quality: For embossed sheets, it may result from insufficient pressure between the embossing rollers, incorrect roller temperature, or misalignment of the pattern. Solution: Check and adjust the pressure settings of the embossing rollers to ensure proper embossing depth. Maintain the appropriate roller temperature for the material being processed. Regularly align the embossing patterns to avoid distortion.

• Lamination delamination: In laminate sheet production, this issue can occur due to insufficient adhesive application, improper lamination temperature, or contamination on the surfaces of the layers. Solution: Optimize the adhesive application process to ensure an even and adequate amount of adhesive is used. Control the lamination temperature precisely according to the adhesive and material requirements. Thoroughly clean the surfaces of the layers before lamination to prevent contamination.

• Printing defects: For marble - effect sheets, printing defects like blurred patterns, color bleeding, or uneven ink distribution may happen. This can be due to issues with the printing equipment, incorrect ink viscosity, or improper registration. Solution: Regularly maintain and calibrate the printing equipment. Adjust the ink viscosity to the appropriate level for the printing process. Ensure proper registration of the printing plates or rollers to achieve accurate pattern placement.

4. How does the quality of raw materials impact PVC Marble(Embossing)/Laminate Sheet production?

The quality of raw materials directly influences the final product's performance and appearance. High - quality PVC resin ensures that the sheets have good mechanical properties, such as impact resistance and bending strength. Inferior resin may lead to brittle sheets that are prone to cracking during processing or use.

The quality of plasticizers and stabilizers affects the flexibility and weather resistance of the sheets. Low - quality plasticizers can cause the sheets to become rigid over time, while poor - quality stabilizers may result in discoloration or degradation when exposed to heat or light.

For pigments and printing inks, high - quality ones are essential for achieving accurate and long - lasting colors and realistic marble patterns. Low - quality pigments may fade quickly, reducing the aesthetic appeal of the sheets. In laminate sheet production, the quality of decorative films and protective coatings determines the durability and visual quality of the final product. Poor - quality films may peel off easily, and ineffective protective coatings offer little protection against scratches or UV damage.

5. What is the role of the embossing process in PVC Marble(Embossing)/Laminate Sheet production?

The embossing process in PVC marble and laminate sheet production plays a vital role in enhancing the aesthetic appeal and functionality of the sheets. For PVC marble sheets, embossing creates a three - dimensional texture that closely resembles the natural veining and surface characteristics of real marble. This texture not only makes the sheets look more realistic but also adds a tactile element, enhancing the overall visual and physical experience.

In laminate sheet production, embossing can be used to create various surface patterns, such as wood grain, fabric textures, or geometric designs. These patterns add visual interest and can also provide a non - slip surface in certain applications. Additionally, the embossing process can improve the mechanical properties of the sheets, such as increasing their surface hardness and scratch resistance, by altering the surface structure of the material.

6. What are the different types of PVC Marble(Embossing)/Laminate Sheet Production Lines available?

• Single - layer production lines: These are suitable for basic PVC sheet production, whether for simple marble - effect sheets or single - layer laminate sheets. They are relatively simple in structure and are ideal for small - scale production or for producing products with basic requirements. Single - layer lines usually have a lower initial investment cost and are easier to operate and maintain.

• Multi - layer co - extrusion lines: These are designed for producing more complex PVC marble or laminate sheets with multiple layers. In co - extrusion, different materials or formulations can be extruded simultaneously to form a single sheet with integrated layers. For example, in laminate sheet production, a co - extrusion line can produce a sheet with a base PVC layer, a decorative film layer, and a protective coating layer all in one pass. Multi - layer co - extrusion lines offer greater flexibility in product design and can produce high - performance sheets with enhanced functionality and appearance.

• High - speed production lines: As the name implies, these lines are optimized for high - volume production. They have faster extrusion speeds, more efficient cooling systems, and high - speed cutting and stacking mechanisms. High - speed production lines are equipped with advanced automation and control systems to ensure consistent product quality even at high production rates. They are suitable for large - scale manufacturers who need to meet significant market demands quickly.

7. How much does a PVC Marble(Embossing)/Laminate Sheet Production Line cost?

The cost of a PVC Marble(Embossing)/Laminate Sheet Production Line varies significantly depending on its type, capacity, and features. A basic single - layer production line can cost between 200,000. This includes the cost of the extruder, printing (if applicable), embossing (if applicable), cooling, and cutting equipment.

Multi - layer co - extrusion lines, which are more complex and offer greater functionality, typically range from 800,000. The price can be higher for lines with advanced features such as precise layer thickness control, high - resolution printing capabilities, and sophisticated lamination systems.

High - speed production lines, due to their high - end technology and large - scale production capacity, can cost upwards of $800,000, and in some cases, even several million dollars for fully automated, high - capacity systems with advanced control and monitoring features.

8. How often should a PVC Marble(Embossing)/Laminate Sheet Production Line undergo maintenance?

Daily maintenance is essential to keep the production line running smoothly. Operators should clean the surfaces of all equipment, remove any accumulated debris or material residues, and check for any signs of wear or damage on moving parts. Lubricate all the necessary components to ensure smooth operation.

Weekly maintenance involves a more in - depth inspection. Check the calibration of the extruder, embossing rollers, printing equipment, and cutting devices. Inspect the electrical and hydraulic systems for any leaks or malfunctions. Clean the filters of the cooling and ventilation systems to maintain proper airflow and temperature control.

Monthly maintenance may include disassembling and cleaning some of the internal components of the extruder, such as the screw and barrel, to remove any built - up material. Calibrate the sensors and control systems to ensure accurate operation. Check and adjust the tension of conveyor belts and other moving parts.

An annual comprehensive maintenance service by professional technicians is highly recommended. This includes a complete overhaul of the production line, replacement of worn - out parts, and a thorough inspection and adjustment of all systems to ensure long - term reliability and optimal performance.

9. What are the benefits of automation in PVC Marble(Embossing)/Laminate Sheet Production Lines?

Automation in these production lines offers numerous benefits. Firstly, it significantly increases production efficiency. Automated systems can operate continuously with minimal human intervention, reducing production time and increasing output volume. They can perform tasks such as material feeding, extrusion control, printing, embossing, and cutting at high speeds and with consistent precision.

Secondly, automation improves product quality. Automated control systems can monitor and adjust various production parameters in real - time, ensuring that each sheet meets the strict quality standards. This reduces the occurrence of defects caused by human error, such as inconsistent thickness, inaccurate patterns, or improper lamination.

Automation also enhances workplace safety. By minimizing the need for workers to perform dangerous or repetitive tasks, it reduces the risk of workplace injuries. Additionally, automated production lines can collect and analyze large amounts of production data, providing valuable insights for process optimization, quality improvement, and predictive maintenance, which helps in reducing production costs and increasing the overall competitiveness of the business.

10. How can I reduce waste in my PVC Marble(Embossing)/Laminate Sheet Production Line?

• Optimize raw material usage: Use precise weighing and mixing systems to ensure accurate formulation of raw materials, avoiding over - usage. Implement a recycling system for scrap materials generated during production, such as off - cuts or defective sheets. These can often be ground up and reused in the production process, reducing the need for new raw materials.

• Improve process control: Regularly calibrate and maintain all production equipment to ensure consistent and accurate operation. This helps in minimizing the production of defective products. Use advanced process control systems that can detect and correct any deviations in the production process in real - time, reducing waste caused by product rejections.

• Enhance quality control: Set up in - line quality inspection points at various stages of the production process. Use sensors and imaging systems to detect defects early, such as printing errors, embossing irregularities, or lamination problems. By catching and correcting these issues promptly, fewer sheets will be rejected at the end of the production line, reducing waste.

• Optimize cutting and packaging: Use efficient cutting algorithms and techniques to minimize scrap during the cutting process. Ensure that the cutting blades are sharp and properly aligned to achieve clean cuts. Optimize the packaging process to reduce the use of excess packaging materials and avoid damage to the sheets during handling and transportation, which can otherwise lead to product waste.

11. What are the main challenges in scaling up PVC Marble(Embossing)/Laminate Sheet production?

• Maintaining product quality consistency: As production volume increases, it becomes more difficult to ensure that every sheet meets the same high - quality standards. Variations in raw material batches, fluctuations in production parameters, and increased wear and tear on the equipment can all affect product quality. To address this, it is necessary to implement more stringent quality control measures, upgrade to more advanced monitoring and control systems, and conduct regular equipment maintenance and calibration.

• Meeting raw material demand: Scaling up production requires a significantly larger supply of raw materials. Ensuring a stable and reliable supply of high - quality raw materials at a reasonable cost can be a major challenge. This may involve establishing long - term contracts with multiple suppliers, investing in raw material storage facilities, and constantly evaluating and sourcing new suppliers to avoid shortages or quality issues.

• Managing labor and training: With increased production, more labor is needed. Hiring, training, and managing a larger workforce can be complex. Workers need to be trained to operate new or additional equipment efficiently and safely, and maintaining high levels of productivity and quality among a larger team becomes more challenging. This requires the development of comprehensive training programs, effective performance management systems, and a positive work culture to retain and motivate employees.

• Investment in equipment and infrastructure: Scaling up production often requires significant investment in new or upgraded production equipment, as well as expansion of the production facility and supporting infrastructure. Costs include purchasing new extruders, printing and embossing machines, lamination equipment, and upgrading electrical, ventilation, and cooling systems. Securing the necessary capital for these investments and ensuring a smooth integration of new equipment into the existing production process can be a major hurdle for many businesses.
