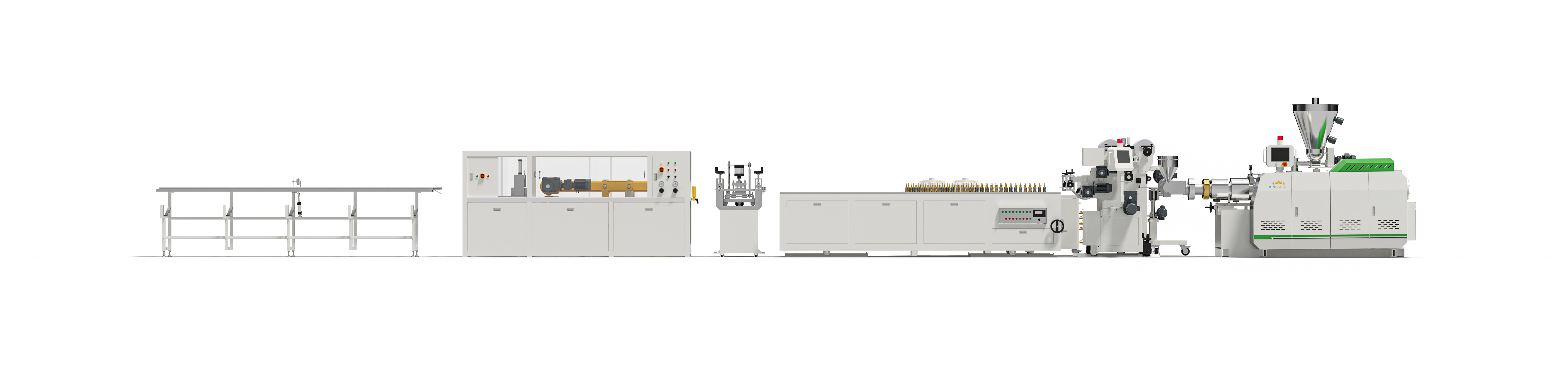

PVC Soffit Panel Production Machine Line

PVC exterior soffit wall panels are made of polyvinyl chloride(PVC) treated with a unique process, and are suitable for various architectural styles such as villas, community heights, buildings,and old building renovations. PVC exterior wall hanging boards have clear lines, simple and lively appearance, are very modern, and have super weather resistance.

Model:
SJZB 65/132 & SJ45/30
Brand:
Kingshine


Availability:



Inquire

Product Description

PVC Soffit Panel Production Machine Line Video

PVC Soffit Panel Production Line Features:

Extruder ：

PVC Soffit Panel Production Line adopts Two Extruder:

The first extruder adopts a twin-screw extruder：Plasticization and mixing，The second extruder is a single-screw extruder：Forming and extrusion

Gearbox

From Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time.

Driving system

Adopting Siemens motor, which provide stable torque output and various speed.

ABB frequency converter and Schneider electric control system

Have wide adjustment range, high precision temperature control, simple operation and good reliability.

Cooling device

Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extrusion.

Punching machine

Punch out evenly distributed small holes on the siding panel.

Haul-off unit and Cutter

The traction and cutting integrated machine in the production of PVC soffit wall panel is a device that integrates the functions of traction and cutting

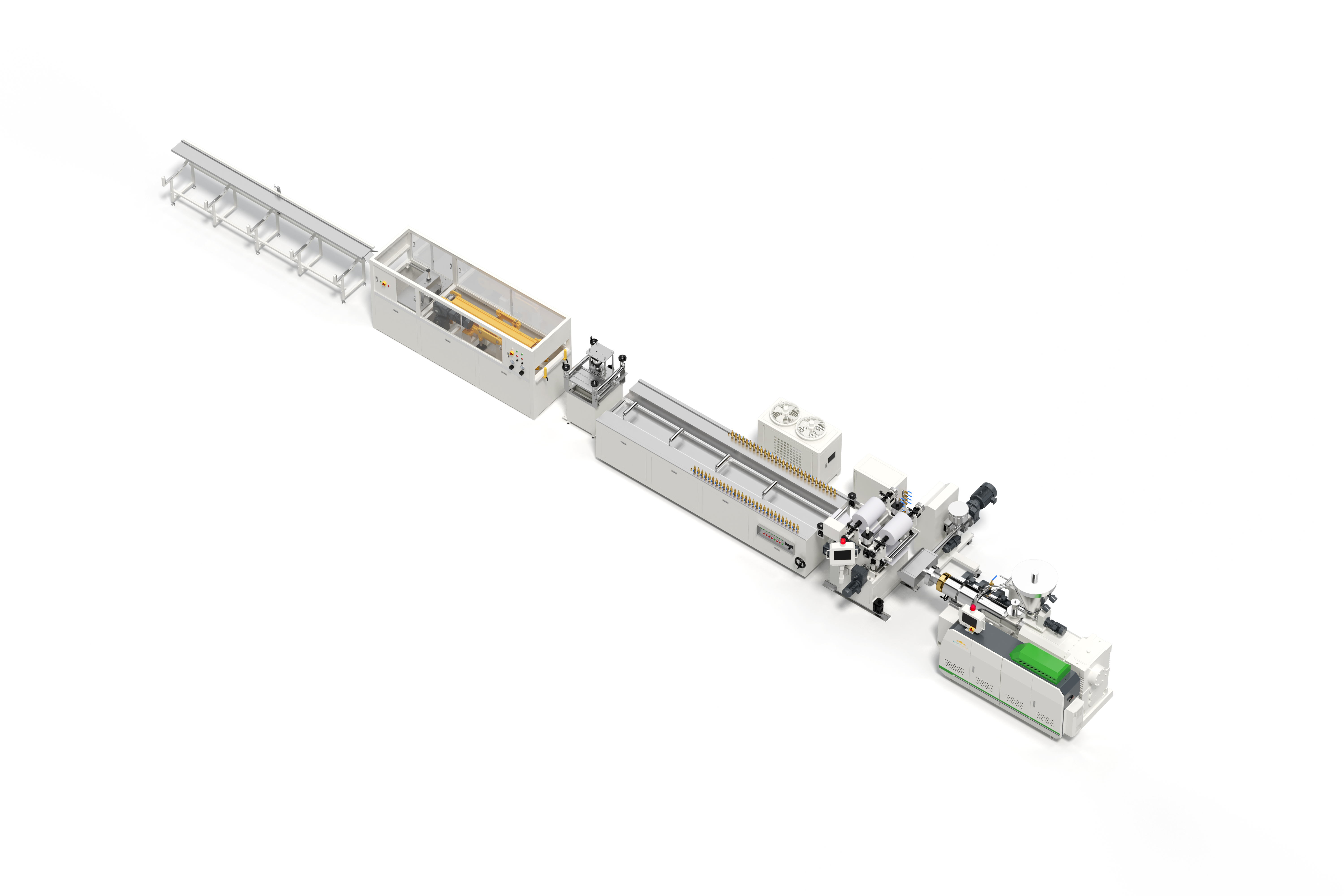

The Layout Diagram Of PVC Soffit Panel Production Machine Line:

SOFFIT PANEL

PVC Soffit Panel Production Machine Line Process

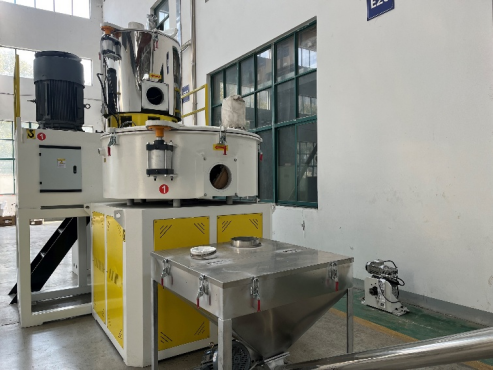

Mixer

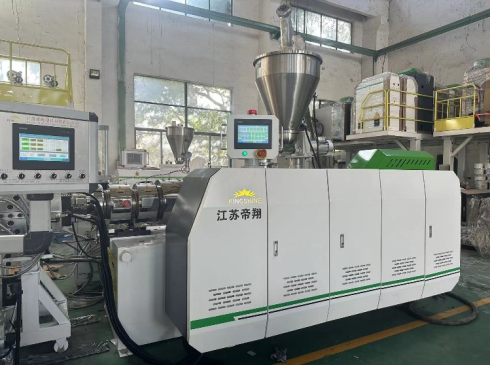

Extrusion

PVC Soffit Panel Production Machine Line Technical Parameter

Main Extruder	Conical Twin Screw Extruder 65/132
Co-extruder	Single Screw extruder 45/30
Width(mm)	400
Capacity(kg/h)	100-250

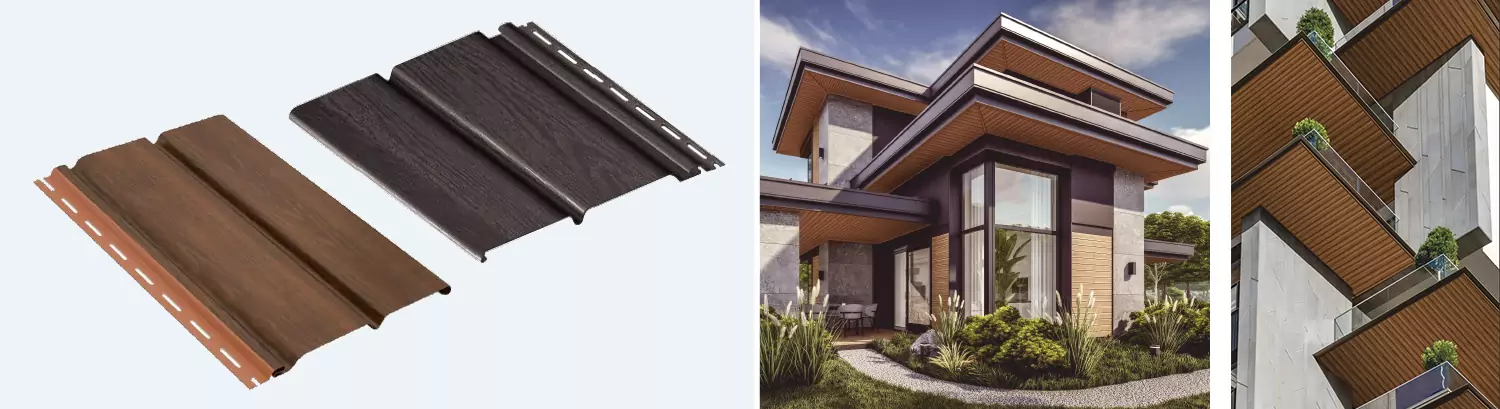

Advantages of PVC exterior soffit wall panels

PVC soffit panels are a universal solution.smooth panels may effectively imitate steel, whilst a soffit with wood texture bears a striking resemblance to real wood.
PVC soffit panels are available in a variety of colours ,they can be matched to the roof structures and facade of the building in vari-ous colours.
PVC soffit panels are resistant to moisture.
PVC soffit panels are resistant to mechanical damage, nontoxic and incombustible,profiled elements of PVC soffits are light, so they do not cause difficulties during assembly,Additionally,many PVC soffit systems also include perforated panels to ensure adequate roof ventilation.
PVC soffit does not require maintenance, renovation or painting.
PVC soffit is relatively cheap.

What we are offering about PVC Soffit Panel Production Machine Line project?

1.PVC Soffit Panel Full Production Line:

PVC Soffit Panel Production Machine ,Mixer,Crushing & Mill Machine,Packing Machine

2. Raw Materials for Soffit Panel:

Chemicals:PVC SG7,Calcium powder,Stabilizer,PVC Lubricant,PE Wax

3. Spare Parts for Soffit Panel Manufacturing Line:

Extruder Mould,Rollers,Screw & Barrel,Punching ,Stacker

Service & Support

Why Choose Kingshine Machine

Kingshine specializes in manufacturing high-end PVC plastic extrusion equipment.

Our company specializes in the research and development of SPC/LVT flooring production line, PVC laminate production line, PVC foam board production line, PVC door board / door frame production line.

Kingshine equipment exported to Europe, the Middle East, Africa and Southeast Asia and other countries and regions, enjoying the reputation and praise of customers at home and abroad.

Our company provides the whole line turnkey project, according to customer project requirements, there are senior experts to provide customers with a full range of services.

ONE-STOP SALES SERVICE

Pre-sale service

To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.

Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.

After-sale service

1. Installation overseas

2. Provide all kinds of product formula, technology and chemical material manufacturer information

3. According to the customer's requirements, provide technical guidance

4. Technical training for employees of customers

5. Responsible for maintenance service, door to door service if necessary.

Certificates

1581360ea84106dd78fa5dcc36d6e7a

FAQ

PVC Soffit Panel Production Machine Line FAQ

1.What is the production process?

Raw materials (PVC resin, plasticizers, etc.) are precisely weighed and mixed, then fed into an extruder for heating, melting and extrusion through a die. The extrudate is shaped in a calibration unit, solidified in a cooling system, cut to length by a cutting device, and finally collected for packaging.

2.What materials are used?

PVC resin is the main material, with plasticizers (for flexibility), stabilizers (for weather resistance), colorants (for color), fillers (e.g., calcium carbonate, for rigidity and cost reduction) added; impact modifiers may be included in some cases.

3.What are common issues and solutions?

Uneven surface texture: Caused by uneven material mixing or improper die temperature; solve by thorough mixing and regular die temperature calibration. - Incorrect dimensions: Due to poor calibration unit or cutting device alignment; solve by regular calibration and checking cutting blades. - Color variation: From inconsistent colorant addition or temperature fluctuations; solve by precise colorant measurement and temperature monitoring. - Machine jams: From foreign objects or material buildup; solve by screening raw materials and regular cleaning.

4.How does raw material quality affect production?

High-quality materials ensure good performance (strength, flexibility, weather resistance, color retention); inferior materials cause brittleness, cracking, or poor aesthetics.

5.What is the role of calibration?

It cools and shapes the hot extrudate to precise dimensions via dies and cooling channels, ensuring it meets specs, improves integrity, and fits well during installation.

6.What types of production lines are available?

Manual-semi-automatic (small-scale, low cost, less efficient), fully automatic (large-scale, high efficiency, low labor), high-speed (mass production, fast processes).
